TENSIONER, Belt: Removal: 3.2L

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right front wheel well inner splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL .

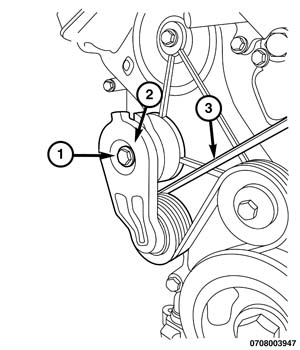

    GC0158467Courtesy of CHRYSLER GROUP, LLC
  2. Rotate the belt tensioner (2) counterclockwise.
    CAUTION:

    Do not let the tensioner arm snapback to the fully extended position, severe damage may occur to the tensioner.

  3. Remove the serpentine belt (3) from the belt tensioner only.
  4. Remove the bolt (1) and the belt tensioner (2).
