Throttle Body: Installation: 2.4L

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

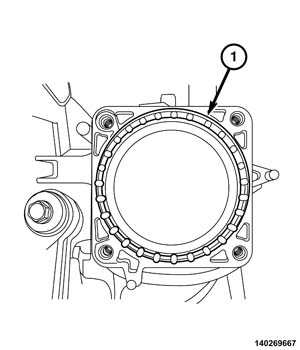

If necessary, Install a new throttle-to-intake manifold gasket (1).

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
DO NOT OVER TORQUE. Over tightening can cause damage to the throttle body, gaskets, bolts or the intake manifold.
Install throttle body (3). Tighten four bolts (1, 2) finger tight.

Fig 1: Throttle Body Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.
Tighten the bolts in criss cross pattern to the proper torque. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Install throttle body support bracket (2), bolt (3) and nut (1). Tighten fasteners to:
- Tighten the bracket nut (1) to the proper torque. Refer to TORQUE SPECIFICATIONS .
- Tighten the bracket bolt (3) to the proper torque. Refer to TORQUE SPECIFICATIONS .
Courtesy of CHRYSLER GROUP, LLC
Install wire harness retainer (3) to throttle body (2) and connect the throttle body wire harness connector (1).
Install the air cleaner resonator assembly. Refer to RESONATOR, AIR CLEANER, INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
Use a scan tool to clear all Diagnostic Trouble Codes (DTC) and perform Electronic Throttle Control (ETC) relearn function.
