Tube, Fuel Tank Filler: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

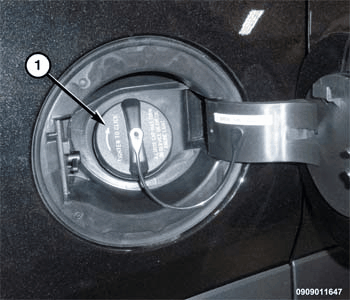

GC0159629Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the fuel cap (1).
    GC0156252Courtesy of CHRYSLER GROUP, LLC
  3. Remove the right rear wheelhouse splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL .
  4. Loosen the hose clamp (2) and remove the fuel filler tube (3) from the fuel tank (1).

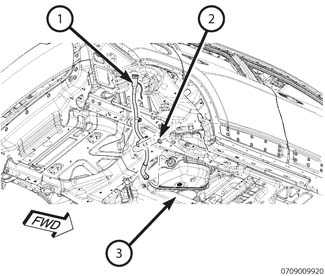

    GC0160156Courtesy of CHRYSLER GROUP, LLC
  5. Remove the filler tube mounting bracket nut (2).
  6. Remove the fuel filler tube from the fuel door housing assembly (1).
