Pump, Engine Oil: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

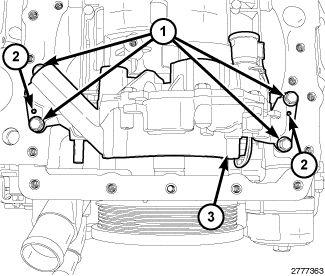

GC0144276Courtesy of CHRYSLER GROUP, LLC
  1. Align the locator pins (2) to the engine block and install the oil pump (3) with four bolts (1). Tighten the bolts to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
    GC0144495Courtesy of CHRYSLER GROUP, LLC
  2. Install the oil pump chain tensioner on the oil pump.
  3. Position the oil pump chain tensioner spring (1) above the dowel pin (2).
  4. Push back the oil pump chain tensioner and insert a suitable retaining pin (3) such as a 3 mm Allen wrench.
    GC0144494Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    There are no timing marks on the oil pump gear or chain. Timing of the oil pump is not required.

    CAUTION:

    Always reinstall timing chains so that they maintain the same direction of rotation. Inverting a previously run chain on a previously run sprocket will result in excessive wear to both the chain and sprocket.

  5. Place the oil pump sprocket (4) into the oil pump chain (3). Align the oil pump sprocket with the oil pump shaft and install the sprocket. Install the T45 retaining bolt (2) and tighten to 25 N.m (18 ft. lbs.).
  6. Remove the retaining pin (1). Verify that the oil pump chain is centered on the tensioner and crankshaft sprocket.
  7. Rotate the crankshaft CW one complete revolution to verify proper oil pump chain installation.
    GC0144277Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Graphic shows the engine timing cover removed for clarity.

  8. Position the oil pump solenoid electrical connector (2) into the engine block. Rotate the connector so that it can be pushed past the primary chain tensioner mounting bolt (1). Then rotate the connector slightly CCW and push it into the engine block until it locks in place.

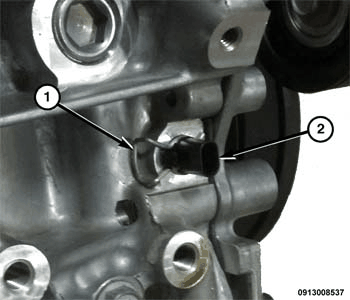

    GC0159604Courtesy of CHRYSLER GROUP, LLC
  9. Verify that the oil pump solenoid electrical connector lock clip (1) is engaged to the electrical connector (2).

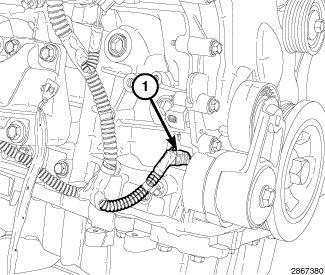

    GC0144434Courtesy of CHRYSLER GROUP, LLC
  10. Connect the engine wire harness to the oil pump solenoid electrical connector (1).
  11. Install the oil pump pick-up. Refer to PICK-UP, OIL PUMP, INSTALLATION .
  12. Install the oil pan. Refer to PAN, OIL, INSTALLATION .
  13. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to STANDARD PROCEDURE  .
    CAUTION:

    A MIL or low oil pressure indicator that remains illuminated for more than 2 seconds may indicate low or no engine oil pressure. Stop the engine and investigate the cause of the indication.

  14. Start and run the engine until it reaches normal operating temperature.
