Insulator, Engine Mount, Rear: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

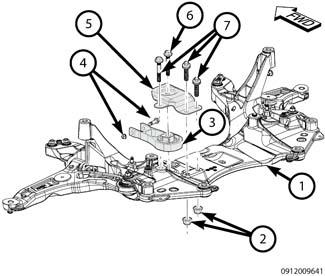

GC0159181Courtesy of CHRYSLER GROUP, LLC
  1. If removed, install the transmission pivot bracket to the transmission. Tighten the bolts to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
  2. Rotate the engine to allow the lower engine strut mount (3) to be installed.

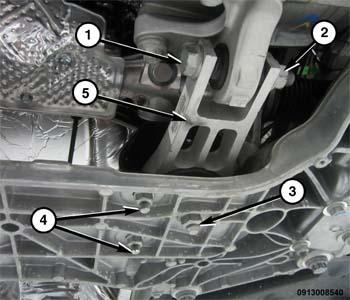

    GC0160125Courtesy of CHRYSLER GROUP, LLC
  3. Position the rear strut mount to the crossmember.
  4. Install the torque strut (5) to pivot bracket through bolt (1). Tighten the nut (2) to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
  5. Install the rear torque strut to cradle through bolt. Tighten the nut (3) to the proper specifications. Refer to TORQUE SPECIFICATIONS  .

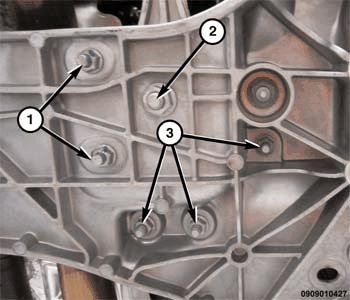

    GC0159575Courtesy of CHRYSLER GROUP, LLC
  6. Tighten the strut cover bracket nuts (1, 3) to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
  7. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
  8. Lower the vehicle.
