Shock Absorber, Suspension: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before proceeding, Refer to WARNING .
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the wheel mounting bolts, then the rear tire and wheel assembly.
- Remove the wheel house splash shield Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL .
- Support the rear suspension with a jack stand or equivalent.

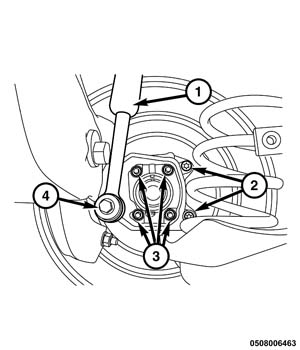

- Remove the bolt (4) securing the lower end of the shock assembly (1) to the lower knuckle assembly.

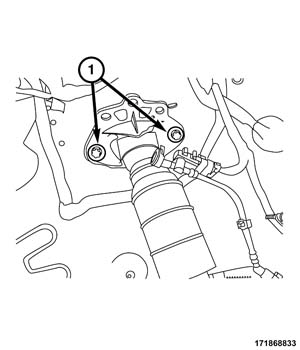

- Remove the upper shock mounting bolts (1) and remove the shock from the vehicle.
