Evaporator, A/C: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC housing and place it on a workbench. Refer to HOUSING, HVAC, REMOVAL .
  2. Remove the heater core. Refer to CORE, HEATER, REMOVAL .

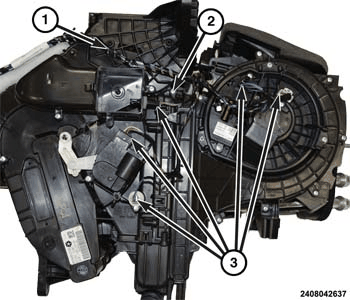

    GC0162324Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connectors (3).
  4. Remove the HVAC wiring harness (1).
  5. Remove the HVAC housing retaining screws (2).

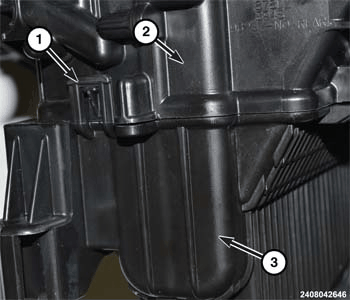

    GC0162223Courtesy of CHRYSLER GROUP, LLC
  6. Disengage the six retaining clips (1) securing the lower section of the HVAC housing (3) to the upper HVAC housing (2).

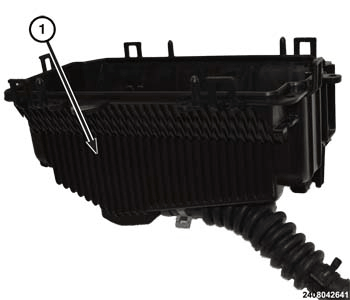

    GC0162315Courtesy of CHRYSLER GROUP, LLC
  7. After all of the retaining clips have been disengaged, remove the lower section (1) of the HVAC housing.

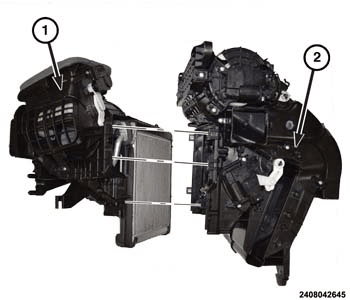

    GC0162316Courtesy of CHRYSLER GROUP, LLC
  8. Disengage the retaining clips securing the front section of the HVAC housing (1) to the rear section of the HVAC housing (2).
  9. After all of the retaining clips have been disengaged, separate the two sections of the HVAC housing.

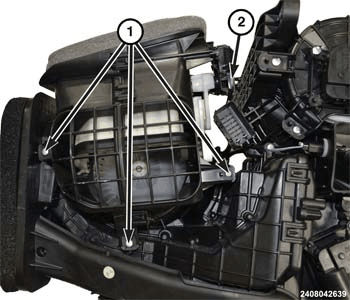

    GC0162301Courtesy of CHRYSLER GROUP, LLC
  10. Remove the retaining screws (1) from the air inlet housing.
  11. Remove the air inlet housing from the HVAC housing.

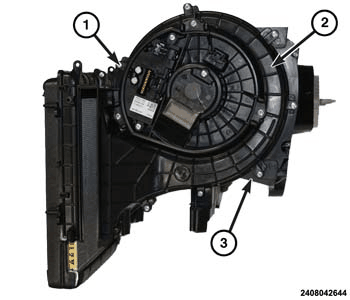

    GC0162322Courtesy of CHRYSLER GROUP, LLC
  12. Remove the retaining screws (1) from the blower motor housing (2).
  13. Remove the blower motor housing from the HVAC housing (3).

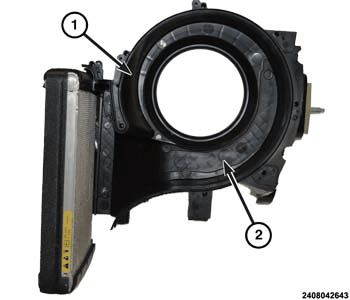

    GC0162256Courtesy of CHRYSLER GROUP, LLC
  14. Remove the tubing cover (2) from the HVAC housing (1).

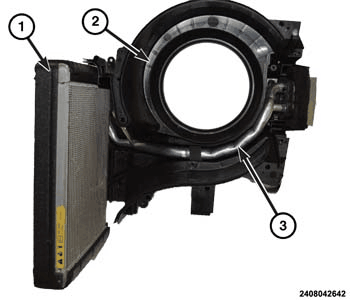

    GC0162264Courtesy of CHRYSLER GROUP, LLC
  15. Slide the evaporator tubes (3) out of the HVAC housing (2) and remove the evaporator (1).
