Module, Power, Blower Motor: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Illustration shown with HVAC housing removed for clarity.

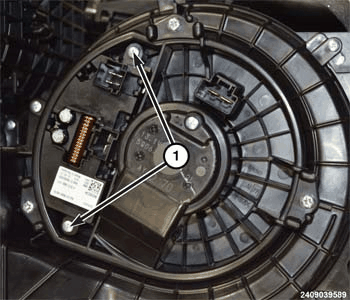

GC0159362Courtesy of CHRYSLER GROUP, LLC
  1. Install the blower motor power module to the blower motor and install the retaining screws. Tighten the screw to 0.8 N.m (7 in. lbs.).

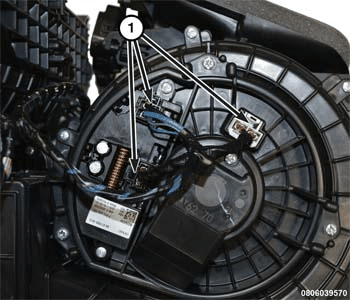

    GC0159553Courtesy of CHRYSLER GROUP, LLC
  2. Connect the wire harness connectors (1) to the blower motor power module.
  3. Install the passenger side console closeout cover.
  4. Install the passenger side silencer panel. Refer to PANEL, SILENCER, LOWER, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
