TENSIONER, Engine Timing: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine timing cover. Refer to REMOVAL  .

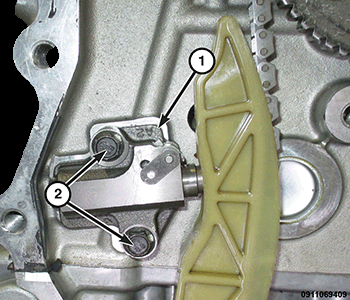

    GC0171480Courtesy of CHRYSLER GROUP, LLC
  2. Remove the bolts (2) and the engine timing chain tensioner (1).
