TENSIONER, Engine Timing: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0156345Courtesy of CHRYSLER GROUP, LLC
  1. Reset the timing chain tensioner. Refer to STANDARD PROCEDURE  .

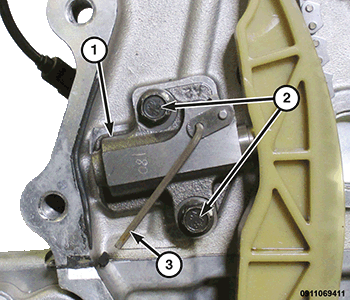

    GC0171688Courtesy of CHRYSLER GROUP, LLC
  2. Install the engine timing chain tensioner (1) and tighten the bolts (2) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  3. Remove the pin (1/8 in. drill bit) (3) from the engine timing chain tensioner.
  4. Verify that the valve timing is correct. Refer to STANDARD PROCEDURE  .
  5. Install the engine timing cover. Refer to INSTALLATION  .
  6. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to STANDARD PROCEDURE  .
  7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  8. Install the resonator.
  9. Install the engine cover.
  10. Run the engine until it reaches normal operating temperature. Check cooling system for correct fluid level. Refer to STANDARD PROCEDURE .
NOTE:

The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components.
