Manifold, Exhaust: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Exhaust Manifold Bolts Tightening Sequence
GC0155999Courtesy of CHRYSLER GROUP, LLC
  1. Install a new exhaust manifold gasket DO NOT APPLY SEALER  .
  2. Install the exhaust maniverter and tighten the NEW  bolts and nuts finger tight.
    Fig 2: Exhaust Manifold Heat Shield Installation Sequence
    GC0156381Courtesy of CHRYSLER GROUP, LLC
  3. Using the tighten sequence shown, tighten the bolts and nuts to 34 N.m (25 ft. lbs.).

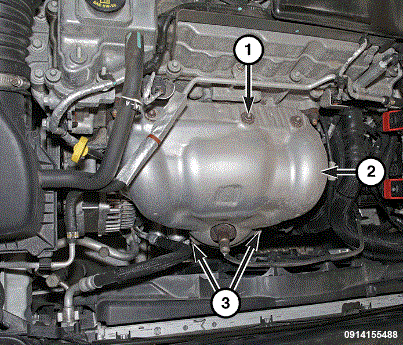

  4. Install the heat shields (2) and tighten the three nuts to 12 N.m (8 ft. lbs.).
    G00667315Courtesy of CHRYSLER GROUP, LLC
  5. Install the two lower heat shield bolts (3) and tighten to 12 N.m (8 ft. lbs.).

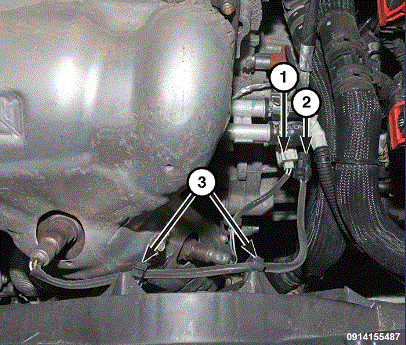

  6. Connect the down stream oxygen sensor wire harness connectors (1).
    G00667319Courtesy of CHRYSLER GROUP, LLC
  7. Connect the upstream oxygen sensors wire harness connectors (2) and attach the wire to the retainer (3).
  8. Raise and support the vehicle. Refer to STANDARD PROCEDURE - HOISTING .
  9. Install the maniverter lower support bracket and tighten three bolts to 20 N.m (15 ft. lbs.).

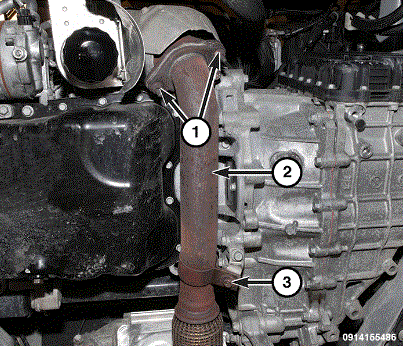

  10. Using a NEW  gasket, connect the exhaust crossunder pipe (2) to the maniverter outlet flange and tighten the two nuts (1) to 19 N..m (14 ft. lbs.).
    G00667323Courtesy of CHRYSLER GROUP, LLC
  11. Install the bolt (3) securing the crossunder pipe to transmission and tighten to 20 N.m (15 ft. lbs.).
  12. Install the belly pan. Refer to INSTALLATION .
  13. Remove the support and lower the vehicle.
    G00667327Courtesy of CHRYSLER GROUP, LLC

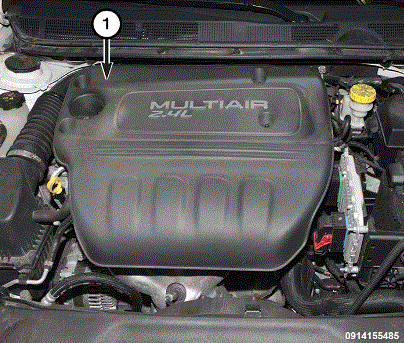

  14. Install the engine cover (1).
  15. Install the air cleaner resonator. Refer to INSTALLATION .
  16. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
