Insulator, Engine Mount, Rear: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

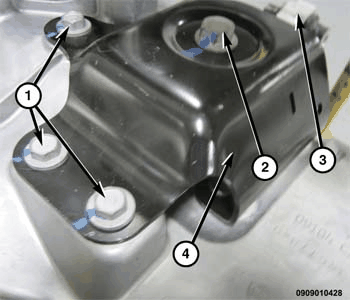

- Position the torque strut (rear engine mount) (3) between the torque strut bracket (4) and the cradle.
- Install the bolt (2) into the torque strut bracket, through the torque strut (3) and into the cradle.
- Position the front of the torque strut (3) around the transmission bracket and install the through bolt and nut (4).NOTE:
Do not reuse the torque strut (rear engine mount) to cradle nut (2). If removed, a new fastener must be installed and tightened to specifications.
- Install a new nut (2) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS
.
- Tighten the torque strut to transmission bracket through bolt and nut (4) to the proper specification. Refer to TORQUE SPECIFICATIONS .
- If equipped, install the skid plate. Refer to PLATE, SKID, TRANSMISSION, INSTALLATION .
