Seal, Crankshaft Oil, Front: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0121287Courtesy of CHRYSLER GROUP, LLC
  1. Reposition the accessory drive belt and remove the vibration damper. Refer to REMOVAL  .

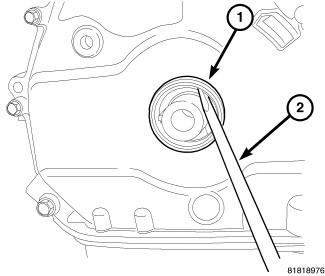

  2. Using a screwdriver (2), remove the front crankshaft oil seal (1). Do not to damage the cover seal surface.
