Damper, Vibration: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove accessory drive belts. Refer to BELT, SERPENTINE, REMOVAL .
    GC0121272Courtesy of CHRYSLER GROUP, LLC

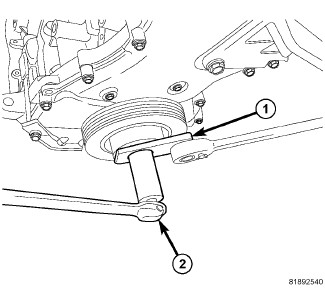

  2. Install Damper holder (special tool #9707, Holder, Vibration Damper) (1).
  3. Remove the crankshaft damper from the crankshaft.
