Cover(S), Cylinder Head: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0171357Courtesy of CHRYSLER GROUP, LLC
  1. Install a NEW  cylinder head cover gasket (1) and tube seals (2) into the cylinder head cover.
    GC0173270Courtesy of CHRYSLER GROUP, LLC
  2. Clean the cylinder head cover sealing surfaces with isopropyl alcohol in preparation for sealant application.
    CAUTION:

    Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Engine Sealant RTV Silicone Rubber Adhesive may result in engine fluid leakage.

    CAUTION:

    Following the application of Mopar® Engine Sealant RTV Silicone Rubber Adhesive to the gasket surfaces, the components must be assembled within 10 minutes and the attaching fasteners must be tightened to specification within the next 10 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.

  3. Apply a 2 to 3 mm wide bead of Mopar® Engine Sealant RTV Silicone Rubber Adhesive to the cylinder head cover sealing surface in six places:
    • Front cover/cylinder head T-joint (1).
    • Variable Valve Actuator Assembly (VVAA)/cylinder head T-joint (2).
    • Rear exhaust camshaft bearing cap/cylinder head T-joint (3).
    GC0171928Courtesy of CHRYSLER GROUP, LLC
  4. Install the cylinder head cover to the cylinder head with thirteen bolts and six stud-bolts (1) hand tight.
    Fig 1: Cylinder Head Cover Bolt Tightening Sequence
    GC0173297Courtesy of CHRYSLER GROUP, LLC
  5. Tighten the thirteen bolts and six stud-bolts in the sequence shown in illustration to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0171292Courtesy of CHRYSLER GROUP, LLC
  6. Install the intake side wire harness tray (1) with three retainers (2).
  7. Install the exhaust side wire harness tray (3) with three retainers (4).
  8. Install the ignition coils. Refer to COIL, IGNITION, INSTALLATION .
    GC0171636Courtesy of CHRYSLER GROUP, LLC
  9. If removed, lubricate the O-ring seal (1) on the Positive Crankcase Ventilation (PCV) valve.

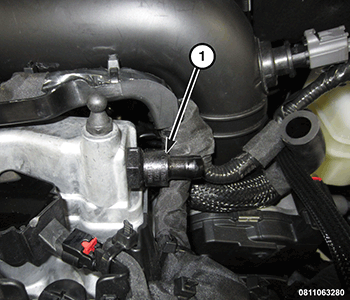

    GC0171953Courtesy of CHRYSLER GROUP, LLC
  10. Install the PCV valve and tighten the valve to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0171332Courtesy of CHRYSLER GROUP, LLC
  11. Install the hose (1) to the PCV valve.
  12. If removed, install the make up air hose to the cylinder head cover fitting with the CLIC E®  type clamp using the Pliers, Hose Clamp (special tool #10288, Pliers, Hose Clamp).
  13. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to STANDARD PROCEDURE  .
  14. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  15. Install the engine cover.
  16. Start the engine and check for leaks.
