2.2L Diesel EGT Sensor 1/3

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0169935Courtesy of CHRYSLER GROUP, LLC

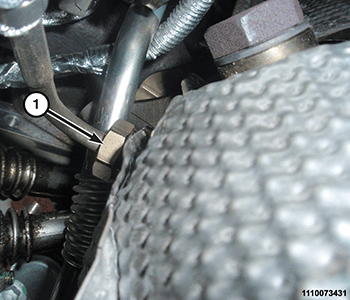

  1. Install the Exhaust Gas Temperature (EGT) sensor 1/3 into the Diesel Oxidation Catalyst (DOC)/Diesel Particulate Filter (DPF) (5) and tighten to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
    GC0169912Courtesy of CHRYSLER GROUP, LLC
  2. Attach the EGT sensor 1/3 wire to the retainer.
  3. Attach the connector (4) to the bracket and connect the EGT sensor 1/3 wire harness connector (1).
  4. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
