Tray, Battery: Removal: Diesel

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0159342Courtesy of CHRYSLER GROUP, LLC
  1. Remove the battery. Refer to BATTERY, REMOVAL .

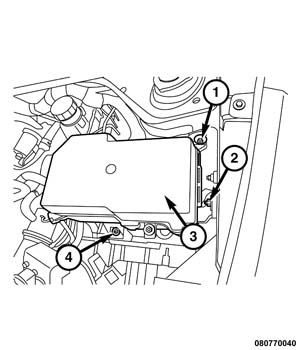

    GC0156264Courtesy of CHRYSLER GROUP, LLC
  2. Remove the Power Distribution Center (PDC) (3) and position aside.

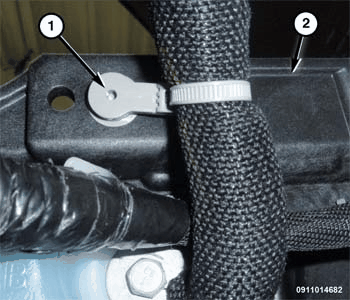

    GC0159565Courtesy of CHRYSLER GROUP, LLC
  3. Detach the hood release cable from battery tray.
  4. Remove the wiring harness retainer (1) from the battery tray (2).
    GC0159788Courtesy of CHRYSLER GROUP, LLC
  5. Remove the upper battery tray bolt (2).
  6. Partially raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  7. Remove the front left side tire.
    GC0159597Courtesy of CHRYSLER GROUP, LLC
  8. Remove the inner wheel splash shield (1).
  9. Remove the battery tray outer side rail bolt.
  10. Remove the bolt (2) that secures the washer solvent bottle to the battery tray (1).
  11. Raise the vehicle.
    GC0160102Courtesy of CHRYSLER GROUP, LLC
  12. Remove the lower belly pan.

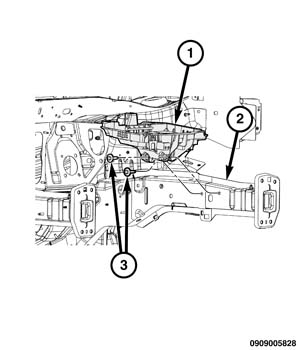

    GC0160024Courtesy of CHRYSLER GROUP, LLC
  13. Remove the bolts (3) that secure the battery tray (1) to the inner frame rail (2).
  14. Lower the vehicle.
  15. Using care, remove the battery tray from the vehicle by rotating the tray.
