Sensor, Intelligent Battery (IBS): Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Do not remove the captive nut, doing so will cause the stud to break.

Remove the components to access the battery. Refer to BATTERY, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

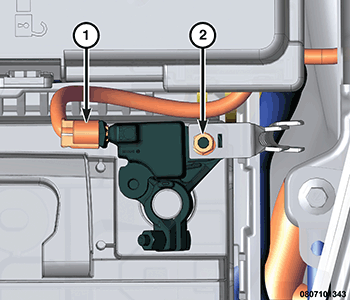

Disconnect the two-pin (Power & LIN) Intelligent Battery Sensor (IBS) electrical connector (1).
Remove the ground terminal M8 hex nut (2).

Courtesy of CHRYSLER GROUP, LLC

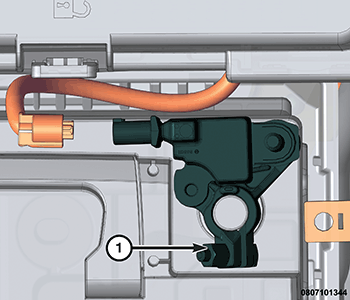

Position and secure the ground cable eyelet away from the battery terminal.
Loosen the M6 captive nut (1).
NOTE:
Do not remove the M6 captive nut, doing so will cause the M6 stud on IBS pole clamp to break.
Using the appropriate battery terminal puller, remove the battery cable terminal from the negative battery post.
NOTE:
Never pry the IBS to remove it from the pole clamp. This will damage the IBS and will need to be replaced.
