Rear Center

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

GC0159601Courtesy of CHRYSLER GROUP, LLC
NOTE:

All seat belt retractors except the driver side front and the rear center include a switchable automatic locking mechanism. Refer to RETRACTOR, SEAT BELT, DESCRIPTION .

  1. Remove the left (60 percent) rear seat from the vehicle as a unit and place it on a suitable work surface. Be certain to take the proper precautions to prevent the trim cover from receiving cosmetic damage during the following procedures. Refer to SEAT, REAR, REMOVAL .

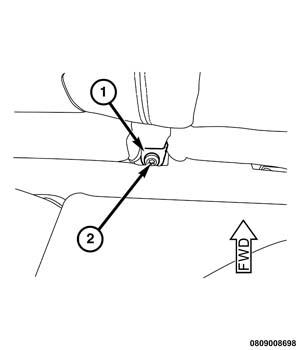

  2. Working from behind the seat, remove the screw (2) that secures the seat belt lower anchor plate (1) to the bracket on the back of the seat cushion frame.
    GC0159207Courtesy of CHRYSLER GROUP, LLC
  3. Remove the two screws that secure the seat belt web bezel (1) to the top of the seat back and disengage the webbing through the slot in the bezel.
  4. Remove the trim cover (2) and foam from the left (60 percent) seat back frame. Refer to COVER, REAR SEAT BACK, 60% .
    GC0159901Courtesy of CHRYSLER GROUP, LLC
  5. Remove the two screws that secure the seat belt web guide (1) to the top of the seat back frame and disengage the webbing through the slot in the guide.
  6. Disengage the push-in plastic fastener that secures the plastic scabbard (2) of the retractor (3) to the seat back frame.
    GC0159541Courtesy of CHRYSLER GROUP, LLC
  7. Remove the screw (3) that secures the rear center seat belt retractor to the rear left (60 percent) seat back panel.
  8. Disengage the T-tab (2) of the retractor bracket from the T-slot of the seat back panel.
  9. Remove the rear center seat belt and retractor unit from the seat back panel.
