Antenna, Remote Start: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Lower the rear of the headliner. Refer to HEADLINER, REMOVAL .

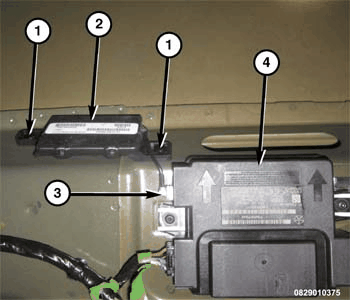

    GC0160080Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the Remote Start Antenna (RSA) connector (3) from the Radio Frequency Hub (RF-Hub) (4).
  4. Remove the two fasteners (1) securing the RSA (2) to the roof.
