Load Beam, Lower: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

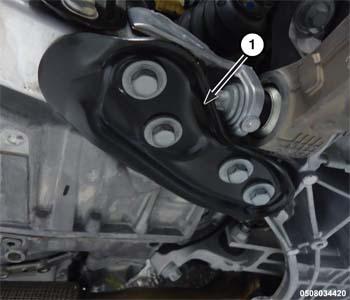

GC0159995Courtesy of CHRYSLER GROUP, LLC
  1. Position a lower load beam on the vehicle and install the lower load beam bracket (1) and loosely install the four bolts. If necessary, repeat for opposite side lower load beam.
    GC0155722Courtesy of CHRYSLER GROUP, LLC
  2. Position the lower load beam extensions (1) and install the bolts (2).
  3. Tighten the lower load beam extension bolts (2) to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .
  4. Tighten the lower load beam bracket bolts to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .

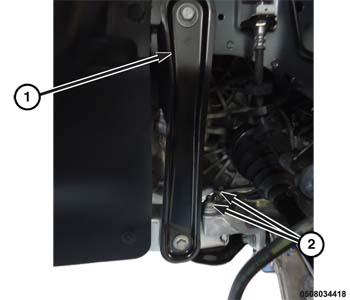

    GC0159767Courtesy of CHRYSLER GROUP, LLC
  5. Install the lower load beam link (1) and tighten the bolts to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .
  6. Install the front fascia. Refer to FASCIA, FRONT, INSTALLATION .
