Standard Bumper

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

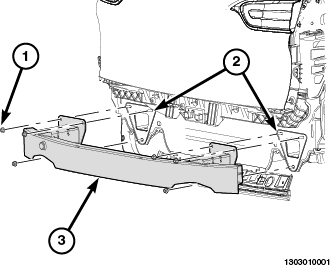

GC0159330Courtesy of CHRYSLER GROUP, LLC
  1. Remove rear fascia. Refer to FASCIA, REAR, REMOVAL .
  2. Remove nuts (1) attaching rear bumper reinforcement (3) to frame rail.
  3. Remove bumper reinforcement (3) from vehicle.
