Rear Fascia Bracket

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

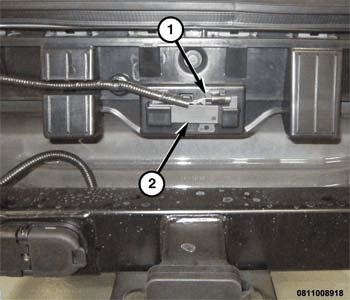

GC0159637Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the rear fascia from the vehicle. Refer to FASCIA, REAR, REMOVAL .
  3. Disconnect the wire harness connector (1) from the connector receptacle for the Low Frequency (LF) antenna (2) located in a pocket near the center of the rear fascia bracket.
  4. Unsnap the antenna from the retainer integral to the rear fascia bracket.
  5. Remove the LF antenna from the vehicle.
