Tube, Sunroof Drain, Rear: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner. Refer to HEADLINER, REMOVAL .
  2. Remove the lower quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL .

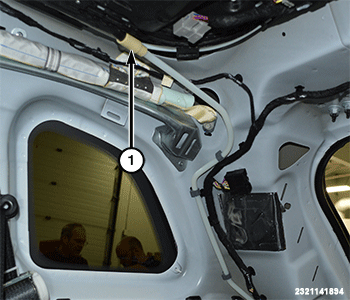

    GC0177044Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the rear drain tube (1) from the sunroof.
  4. Remove the drain tube grommet out of the body panel.
  5. Remove the rear drain tube from all the retaining clips and remove.
