Sunshade, Sunroof: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

multimedia:A supplement to the article is available.

Review the removal and installation video for greater detail.

Courtesy of CHRYSLER GROUP, LLC

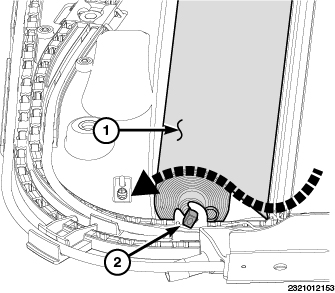

Position the sunshade (1) into the left pivot bracket, then position the right end up and over the right pivot bracket (2).
Rotate the sunshade end into the right pivot bracket.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The sunshade retraction spring force is significant. Firmly hold onto the sunshade while securing the sunshade in the following steps.

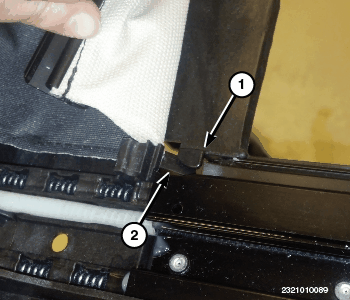

Expose the plastic support runners (2) and guide them under the tabs (1) at each side of the opening.

Courtesy of CHRYSLER GROUP, LLC

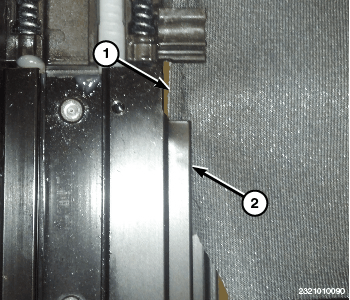

Guide the sunshade fabric (1) under the flanges along the side rails (2) and pull the sunshade forward.

Courtesy of CHRYSLER GROUP, LLC

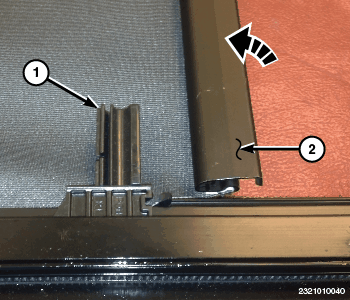

With the tension bar (2) pulled in front of the guides (1), roll the tension bar back.

Courtesy of CHRYSLER GROUP, LLC

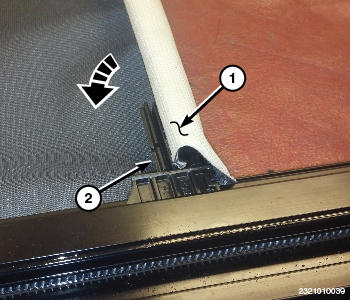

With the tension bar (1) rolled over and positioned over the guides (2), complete rolling the beam over until it snaps into the guides fully.

Courtesy of CHRYSLER GROUP, LLC

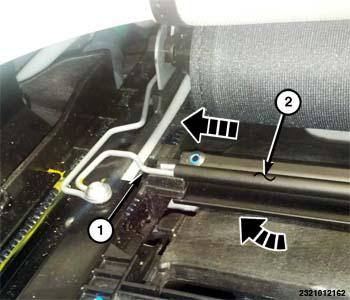

Slide the guide bar (2) into the spring (1).
Rotate the guide bar up and snap it into place.

Courtesy of CHRYSLER GROUP, LLC

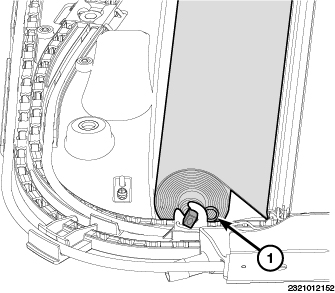

Pull out the pin (1) and release the tension on the traction spring.
Install the rear sunroof glass. Refer to GLASS, SUNROOF, REAR, INSTALLATION .
Connect a 12v power supply and verify the sunshade operation.
Install the drain trough.
Install the front sunroof glass. Refer to GLASS, SUNROOF, REAR, INSTALLATION .
Adjust the sunroof glass. Refer to GLASS, SUNROOF, REAR, ADJUSTMENTS .
Initialize sunroof motor refer to standard procedure. Refer to SUNROOF, DUAL PANE, STANDARD PROCEDURE .
