Seal, Rear Sunroof Glass: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear sunroof glass assembly. Refer to GLASS, SUNROOF, REAR, REMOVAL .

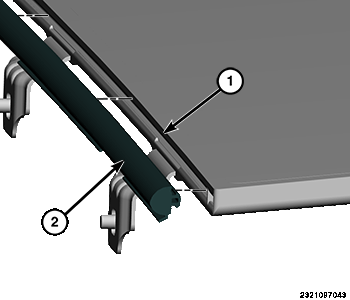

- Separate the glass seal (2) from the notch (1) in the sunroof glass assembly.
- Remove the seal (1) from the glass assembly (2).
