Glass, Sunroof, Rear: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure the sunshade is in the fully opened position.
  2. Remove the front sunroof glass while in vehicle. Refer to GLASS, SUNROOF, REAR, REMOVAL .
  3. Remove the sunroof. Refer to SUNROOF, DUAL PANE, REMOVAL .

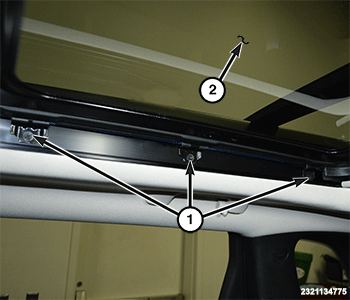

    GC0176994Courtesy of CHRYSLER GROUP, LLC
  4. Remove the six screws (1), then the rear sunroof glass (2).
