Glass, Sunroof, Front: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mechanism cover. Refer to COVER, SUNROOF MECHANISM, REMOVAL .

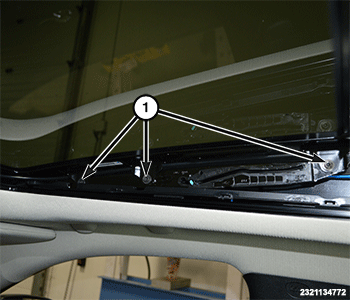

    GC0176992Courtesy of CHRYSLER GROUP, LLC
  2. Remove the three screws (1), on each side of the front glass.

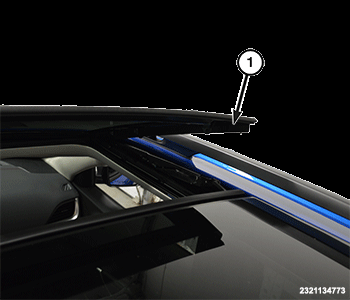

    GC0176915Courtesy of CHRYSLER GROUP, LLC
  3. Lift the front glass (1) from the guide mechanism and remove.
