Cover, Sunroof Mechanism: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Open the sunshade into the full open position.
- Move the front glass into the vent position.
 Courtesy of CHRYSLER GROUP, LLC
|

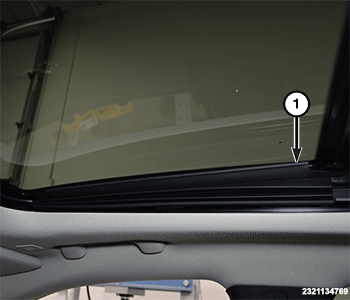

- Separate the mechanism cover from the glass panel by pulling inward on the flange (1).
 Courtesy of CHRYSLER GROUP, LLC
|

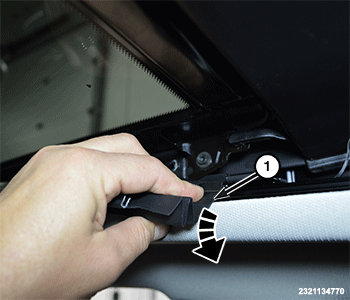

- Roll the lower flange (1) downward to unclip it from the guide, and remove.
- Discard the mechanism cover, do not reuse.
