Cover, Rear Seat Cushion, 40%: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the 40% rear seat
Refer to SEAT, REAR, REMOVAL .

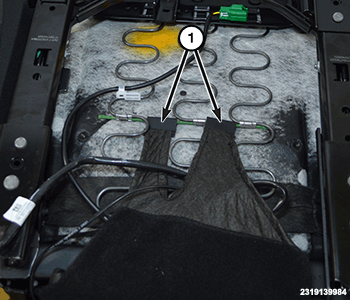

- Release the J-clips (1).

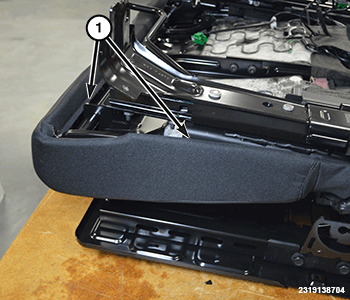

- Release the fastener strips (1) around the front and sides of the seat cover.
- If equipped with seat cushion heater, disconnect the wire harness connector and unclip the wire harness from the seat frame.
- If equipped with an air bag, disconnect the wire harness connector.

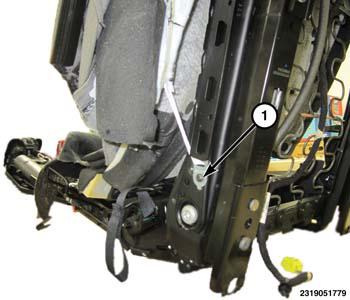

- If equipped with an air bag, remove the screw (1) and separate the air bag tether from the seat frame.

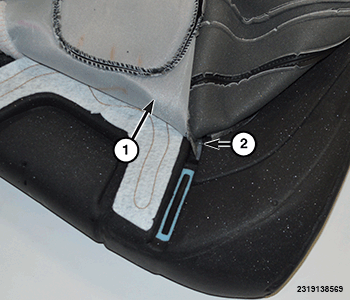

- Pull the seat cushion cover (1) away from the seat back foam, releasing the hook and loop fasteners.
- Cut all the hog rings (2) and remove the rear seat back cover.
