Cover, Rear Seat Back, 60%: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, install the inner side shields.
Position the seat back cover onto the seat back foam and install NEW hog rings.
Pull the seat cover tight and engage the velcro fasteners.
Install the armrest support to the seat back cover.
Position the seat back foam assembly onto the seat back frame.
If equipped with heated seat, route the wire harness and connect the wire harness connector.

Courtesy of CHRYSLER GROUP, LLC

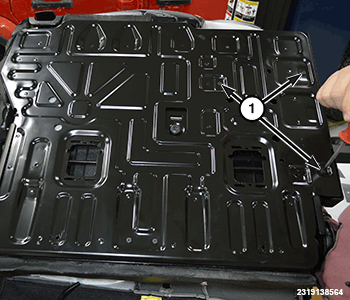

Install the three screws (1), that fasten the armrest support.

Courtesy of CHRYSLER GROUP, LLC
Install the inner armrest trim cover (1).
Install the headrest sleeves.
Install the seat belt trim cover and the two screws.

Courtesy of CHRYSLER GROUP, LLC

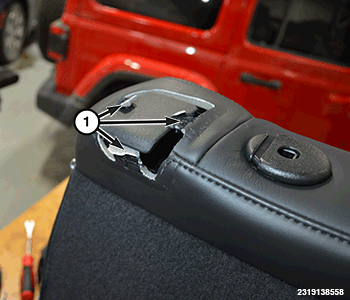

Install the small J-strips (1) around the handle opening.

Courtesy of CHRYSLER GROUP, LLC

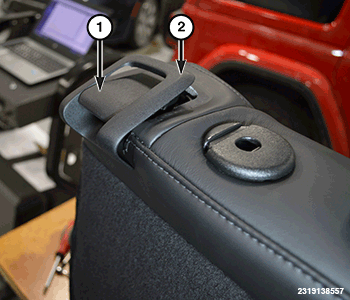

Install the fold flat handle bezel (2).
Lift the handle (1) then install the screw.

Courtesy of CHRYSLER GROUP, LLC

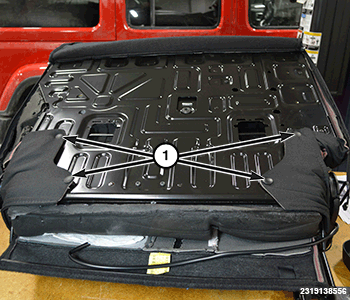

Lift the seat back trim and install the push fasteners (1).

Courtesy of CHRYSLER GROUP, LLC

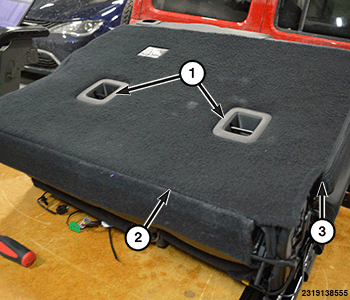

Close the side zippers (3) and close the lower J-strip (2).
Install trim covers (1).
Install the side shields.

Courtesy of CHRYSLER GROUP, LLC

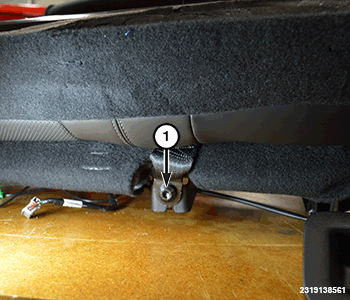

Route the center seat belt and install the bolt (1). Refer to RETRACTOR, SEAT BELT, INSTALLATION .
Install the armrest. Refer to ARMREST, REAR, INSTALLATION .
Install the 60% rear seat into the vehicle. Refer to SEAT, REAR, INSTALLATION .
