Panel, Quarter Trim: Removal: Lower

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the load floor. Refer to LOAD FLOOR, CARGO, REMOVAL .
  2. Remove the upper quarter trim. Refer to PANEL, QUARTER TRIM, REMOVAL .
  3. Remove the rear door scuff plate. Refer to PLATE, SCUFF, LIFTGATE, REMOVAL .
  4. Position the door seal (1) aside.

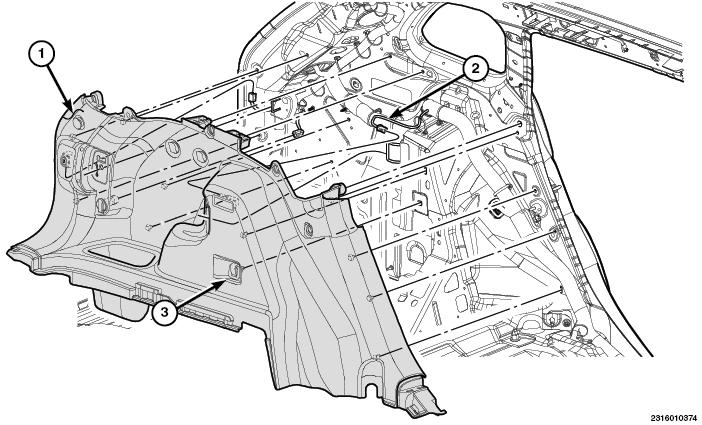

    GC0159823Courtesy of CHRYSLER GROUP, LLC
  5. Remove the screws (3).
  6. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the retaining fasteners that secure the quarter trim panel to the quarter panel.
  7. Pull the quarter trim panel away from the quarter panel.
  8. If equipped, disconnect the electrical connectors (2).
  9. Remove the quarter trim panel (1).

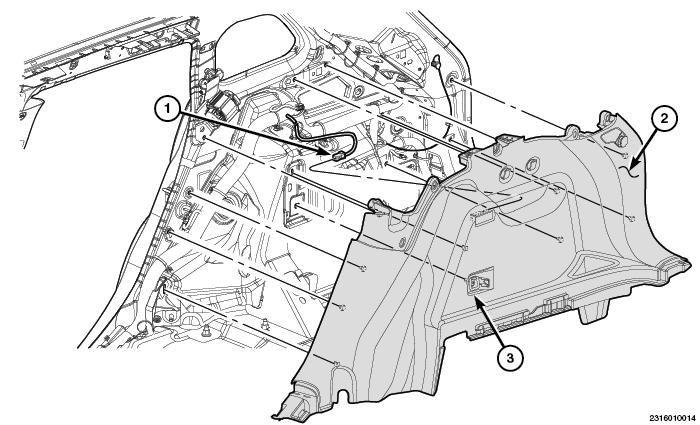

    GC0160057Courtesy of CHRYSLER GROUP, LLC
  10. Remove the screws (3).
  11. Using a trim stick or equivalent, disengage the retaining fasteners that secure the quarter trim panel to the quarter panel.
  12. Pull the quarter trim panel away from the quarter panel.
  13. If equipped, disconnect the electrical connectors (1).
  14. Remove the quarter trim panel (2).
