Load Floor, Cargo: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

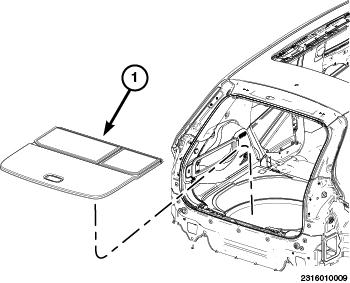

- Open and remove the load floor lid (1).
 Courtesy of CHRYSLER GROUP, LLC
|

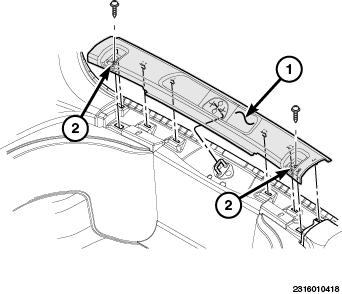

- Remove the screws (2).
- Using trim stick (special tool #C-4755, Trim Stick) or equivalent, separate the retaining clips and remove the liftgate scuff plate (1).
 Courtesy of CHRYSLER GROUP, LLC
|

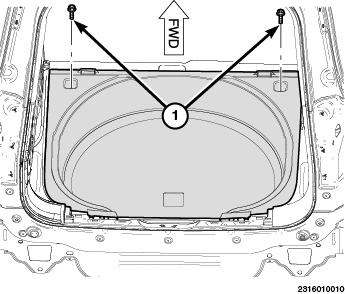

- Remove the two front screws (1).
 Courtesy of CHRYSLER GROUP, LLC
|

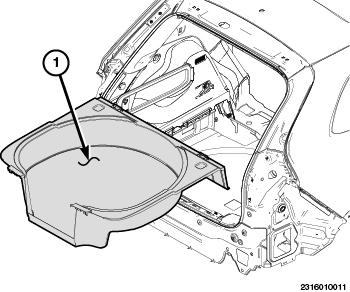

- Remove the load floor bin (1).
