Bezel, Instrument Cluster: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .

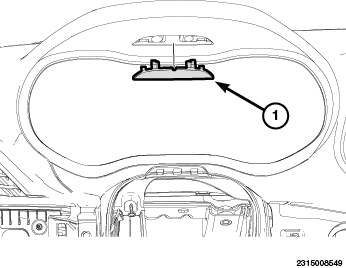

- Using a small flat bladed tool, or equivalent, remove the trim cover (1).

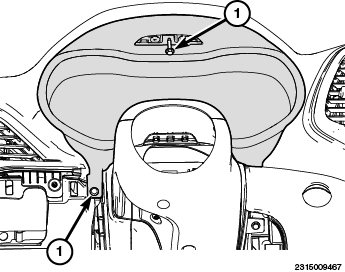

- Remove the fasteners (1).

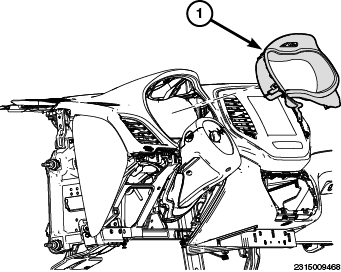

- Remove the cluster bezel (1) from the vehicle
