Panel, Closure, Radiator: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

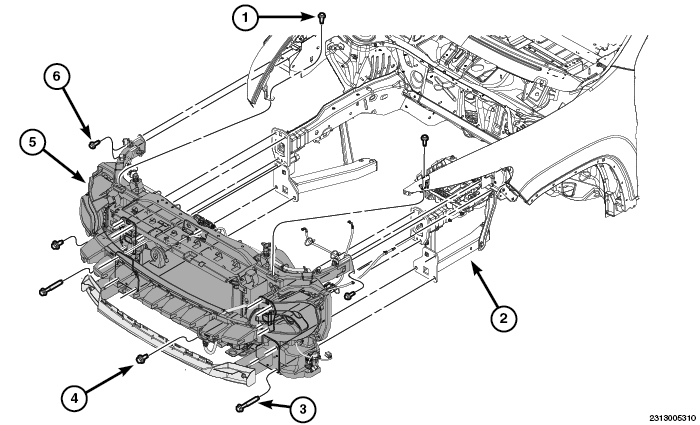

GC0159987Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the bolts securing the hood latch assembly and position the latch aside.
  3. Remove the radiator assembly. Refer to RADIATOR, ENGINE COOLING, REMOVAL .
  4. Remove the charge air cooler, if equipped. Refer to.
  5. Remove both headlamp assemblies. Refer to UNIT, FRONT LAMP, REMOVAL .
  6. Remove the washer bottle. Refer to RESERVOIR, WINDSHIELD WASHER, REMOVAL .
  7. Remove the coolant bottle. Refer to BOTTLE, PRESSURIZED COOLANT, REMOVAL .
  8. Release the clips to remove the headlamp harness and position the harness aside.
  9. Remove the wheel house splash shields. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL .
  10. Remove the shotgun bracket bolt (2) from both sides.
  11. Remove the three bolts (1) on both side securing the radiator closure panel (2) to the fenders and upper body.
  12. Remove the lower two lower bolts (1) on both sides that secure the closure panel (2) to the front of the vehicle body.
  13. Carefully remove the closure making sure the paint on the front edge of the fenders is protected from damage.
