Removal - Fascia
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

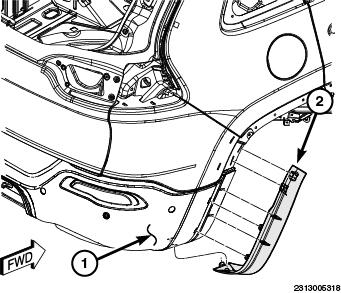

The wheel flares are secured with plastic spring clips. The temperature in the work area and the vehicle should be at least 21° C (70° F) to avoid damaging the flare.
- Remove the rear wheelhouse splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL .
- Use trim tool (special tool #C-4829A, Remover, Trim), or equivalent to release the spring retainers.
- Remove the flare
