Grille, Lower: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped, remove the fog lamps. Refer to LAMP, FOG, REMOVAL .
  2. Remove the front fascia and place on a workbench. Refer to FASCIA, FRONT, REMOVAL .
  3. If equipped, remove the active grille shutter Refer to GRILLE, ACTIVE SHUTTER, REMOVAL .

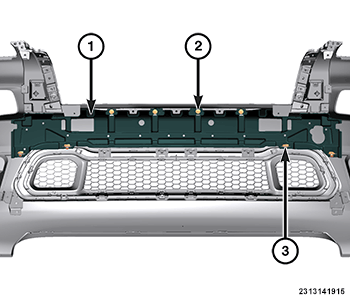

    GC0176974Courtesy of CHRYSLER GROUP, LLC
  4. Remove the four screws (2) securing the energy absorber (1) to the fascia.
  5. Remove the four clips (3) securing the energy absorber (1) to the fascia.
  6. Remove the energy absorber (1) from the fascia.

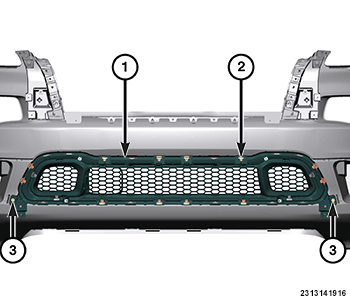

    GC0177034Courtesy of CHRYSLER GROUP, LLC
  7. Remove the 12 clips (2) securing the lower grille assembly (1) to the fascia.
  8. Remove the two screws (3) securing the grille assembly (3) to the fascia.

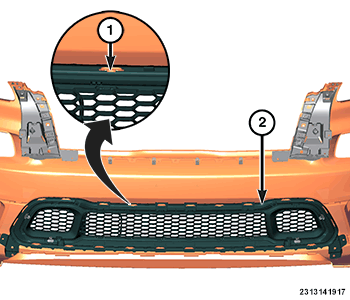

    GC0177001Courtesy of CHRYSLER GROUP, LLC
  9. Release the 10 fascia retaining tabs (1) and remove the lower grille assembly (2) from the fascia.

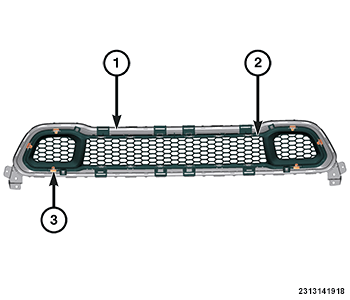

    GC0177053Courtesy of CHRYSLER GROUP, LLC
  10. Remove the six retaining clips (3) securing the grille bezel (1) to the lower grille (2).

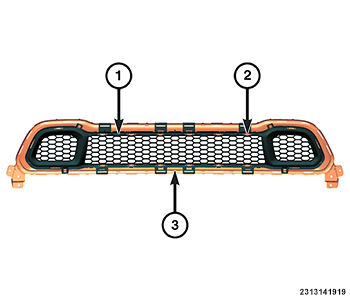

    GC0176998Courtesy of CHRYSLER GROUP, LLC
  11. Release the twelve grille bezel retaining tabs (2) and separate the bezel (3) from the lower grille (1).
