Regulator, Window: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0159423Courtesy of CHRYSLER GROUP, LLC
  1. Remove carrier plate (2) from rear door. Refer to PLATE, CARRIER, REMOVAL .

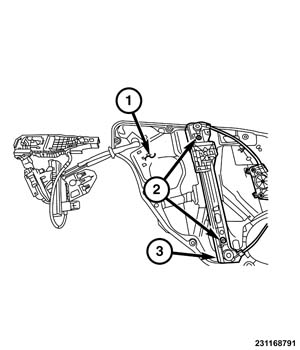

    GC0155620Courtesy of CHRYSLER GROUP, LLC
  2. Remove two window regulator fasteners (2) and remove from the rear of the carrier plate (1).
