Latch, Door: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

Remove the rear door carrier plate (2). Refer to PLATE, CARRIER, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

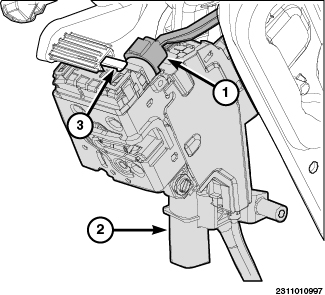

Disconnect the wire harness connector (1).
With the use of a small flat bladed tool or equivalent, gently pry tab (3) and slide the latch (2) off of the presenter bracket.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Front door latch shown, rear door latch similar.

Release the latch cover tabs (3) and remove the latch cover.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Front door latch shown, rear door latch similar.

Disconnect handle and lock cables (1) and remove the latch assembly (2).
