Hinge, Door: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

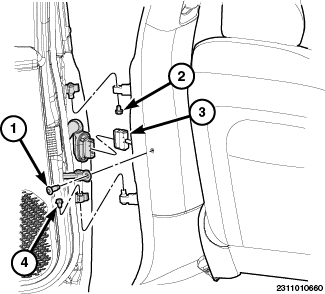

NOTE:

Do not reuse the door half hinge to body side half hinge fasteners (2, 4), replace with new readily available through Mopar parts.

NOTE:

Left upper shown, all other hinges on this model typical

Remove the door-

Remove the door. Refer to DOOR, REAR, REMOVAL .
Transfer the door to a bench.

Courtesy of CHRYSLER GROUP, LLC

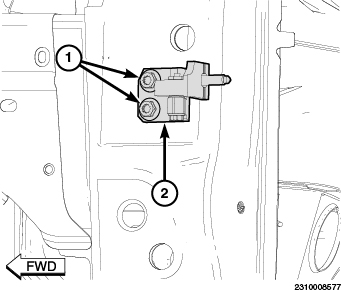

Body side hinge half-

NOTE:

Upper and lower hinge halves are serviced exactly the same

Mark position of the body side half hinge (2) with a grease pencil or other suitable device to ease installation.
Remove the bolts (1) attaching the body side half hinge (2) to the body side.
Remove the body side half hinge (2) from the vehicle.

Courtesy of CHRYSLER GROUP, LLC

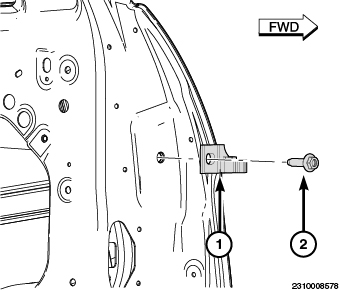

Door side hinge half-

NOTE:

Upper and lower hinge halves are serviced exactly the same

Mark position of the door side half hinge (1) with a grease pencil or other suitable device to ease installation.
Remove the bolt attaching the door side half hinge (1) to the body side.
Remove the door side half hinge (1) from the vehicle.
