Handle, Interior: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Remove rear door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL .

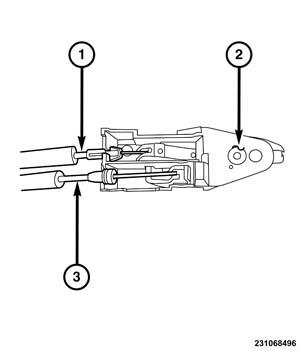

- With the use of a flat bladed tool or equivalent, remove the lock cable from the inside release handle housing (2).
- Place the lock button in the unlocked position and remove the lock cable (3) barrel end.
- With the use of pliers or equivalent, depress the tabs on the handle cable (3) and remove from the inside release handle housing (2).
- Place the pull handle in the open position and remove the handle cable (3) barrel end.
- Remove the inside handle from the vehicle.
