Glass, Door: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0159319Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL .

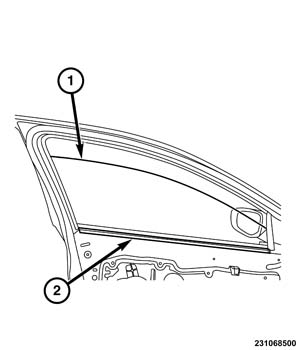

    GC0155558Courtesy of CHRYSLER GROUP, LLC
  3. Using a trim stick or equivalent, pry upward to remove the inner door belt weatherstrip (2) to allow the door glass (1) clearance.

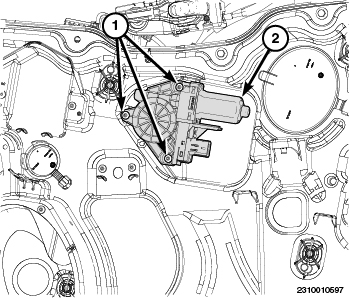

    GC0159445Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the window motor (2) wiring connector.
  5. Remove the three window motor (2) fasteners.
  6. Remove the window motor (2) from the carrier plate.

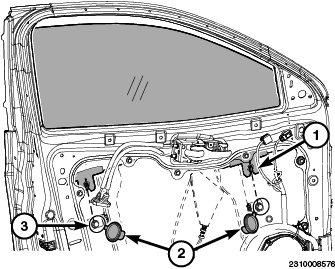

    GC0160010Courtesy of CHRYSLER GROUP, LLC
  7. Open the access plugs (2) to expose the glass fasteners (3).
  8. Lower the glass by hand until the glass fasteners (3) line up in the access holes.
  9. Remove the glass fasteners (1).

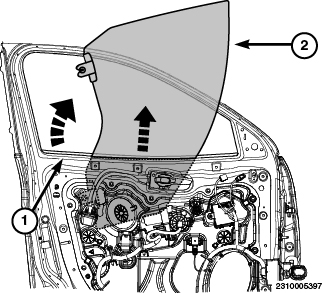

    GC0159985Courtesy of CHRYSLER GROUP, LLC
  10. Lift up on the rear portion of the glass (2) to tilt.
  11. Remove the glass (2) from the door (1).
