Latch, Liftgate: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

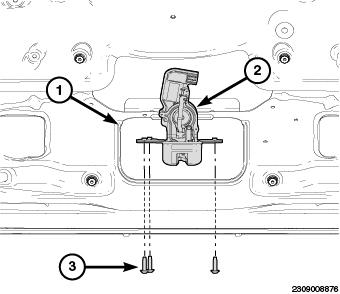

GC0159357Courtesy of CHRYSLER GROUP, LLC
  1. Remove the trim panel from the lift gate. Refer to PANEL, TRIM, REMOVAL .
  2. Remove the three bolts (3) from the lift gate latch (2).
  3. Disconnect the electrical connectors.
  4. Remove the lift gate latch (2) from the lift gate (1).
