Lamp, Park And Turn Signal: Removal: Lamp

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

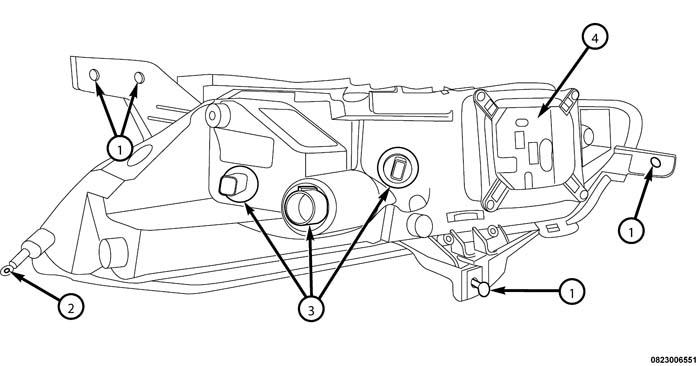

GC0159308Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL .
  3. Disconnect the wire harness connector from the connector receptacles (3) on the back of the front park/turn signal lamp housing.
  4. Remove the fasteners (1) that secure the lamp housing in place.
  5. Pull out on the lamp until the alignment pin (2) has been released.
