Rail, Fuel: Removal: 2.4L

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Risk of injury to eyes and skin from contact with fuel. Wear protective clothing and eye protection. Risk of poisoning from inhaling and swallowing fuel. Pour fuel only into appropriately marked and approved containers. Failure to follow these instructions may result in possible serious or fatal injury.

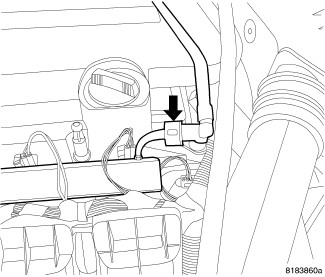

Fig 1: Fuel Line At Rail

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Wrap shop towels around hose to catch any gasoline spillage.

Release the fuel system pressure. Refer to FUEL SYSTEM PRESSURE RELEASE PROCEDURE .
Disconnect and isolate negative battery cable.
Remove engine cover.
Disconnect the fuel line from the fuel rail. Refer to FITTING, QUICK CONNECT .

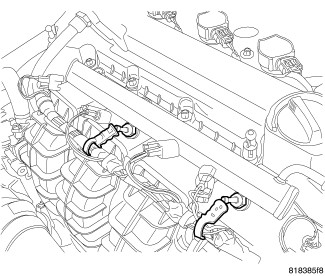

Fig 2: Fuel Injector Electrical Connectors
Courtesy of CHRYSLER GROUP, LLC
Unlock and disconnect the electrical connectors from the fuel injectors.

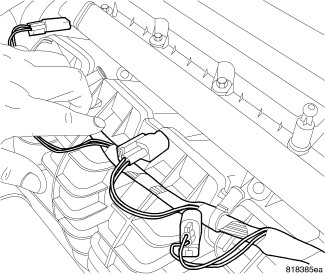

Fig 3: Harness Clips
Courtesy of CHRYSLER GROUP, LLC
Remove the wiring harness from the fuel rail studs.

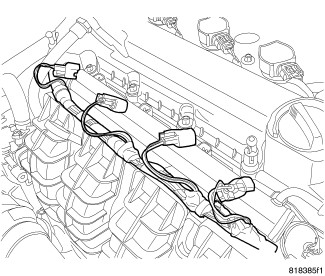

Fig 4: Electrical Harness Removed
Courtesy of CHRYSLER GROUP, LLC
Remove the 2 bolts from the fuel rail at the lower manifold.

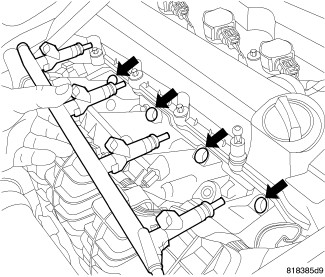

Fig 5: Rail Removal/Install
Courtesy of CHRYSLER GROUP, LLC
Remove the fuel rail and injectors from the intake manifold.

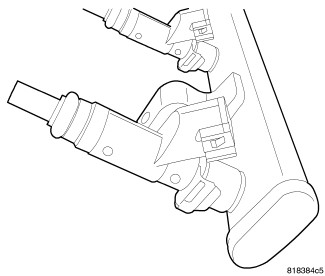

Fig 6: Fuel Injector On Rail
Courtesy of CHRYSLER GROUP, LLC
Remove fuel injector clip holding fuel injector to fuel rail.

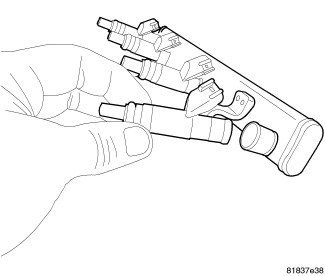

Fig 7: Fuel Injector And Rail
Courtesy of CHRYSLER GROUP, LLC
Remove fuel injectors from fuel rail.
