Transfer Case Lever - Installation

INSTALLATION

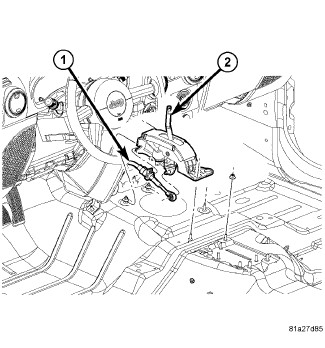

1. Position the shift mechanism over the shifter retaining studs on the floor pan.
2. Install the nuts to hold the shifter mechanism to the floor pan. Tighten the nuts to 11.9 Nm (105 in.lbs.).





3. Verify that the floor shifter is in the 4L position.

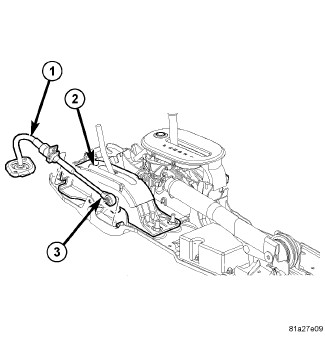

4. Connect the transfer case shift cable to the shift lever body and pin.
5. Install any floor console components previously removed. Center Console - Installation
6. Check for proper transfer case shifter operation.
