Front Crankshaft Oil Seal - Removal

REMOVAL

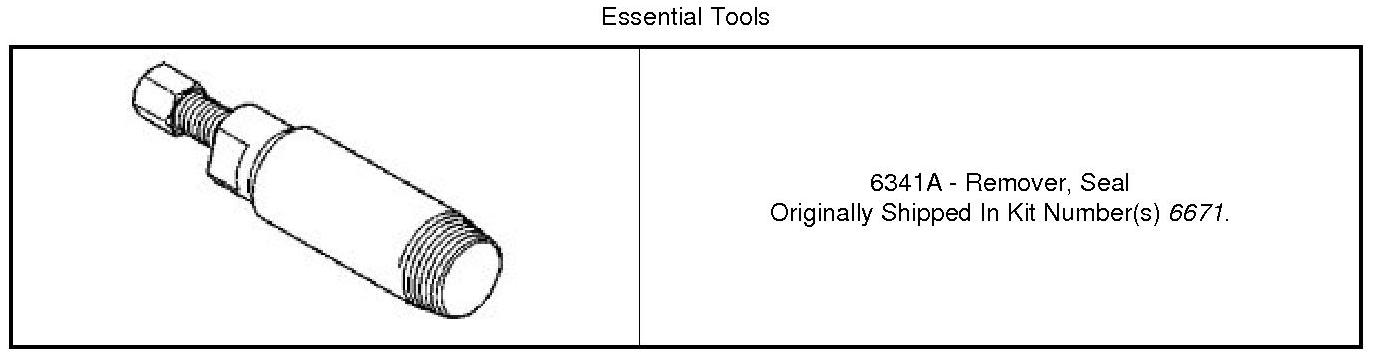

Special Tools:















1. Disconnect negative cable from battery.
2. Remove accessory drive belt. Serpentine Accessory Drive Belt - Removal
3. Remove crankshaft damper. Vibration Damper - Removal

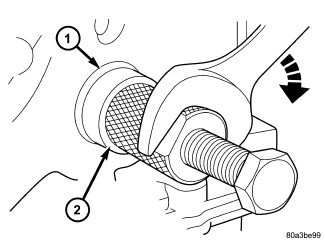

4. Position Special Tool (2) on crankshaft nose. Carefully screw the tool into the seal (1) until it engages firmly. Be careful not to damage that crankshaft seal surface of cover

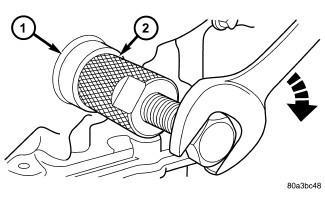

5. Remove oil seal (1) by turning the forcing screw until the seal disengages from the cover.
