Front Crankshaft Oil Seal - Installation

INSTALLATION

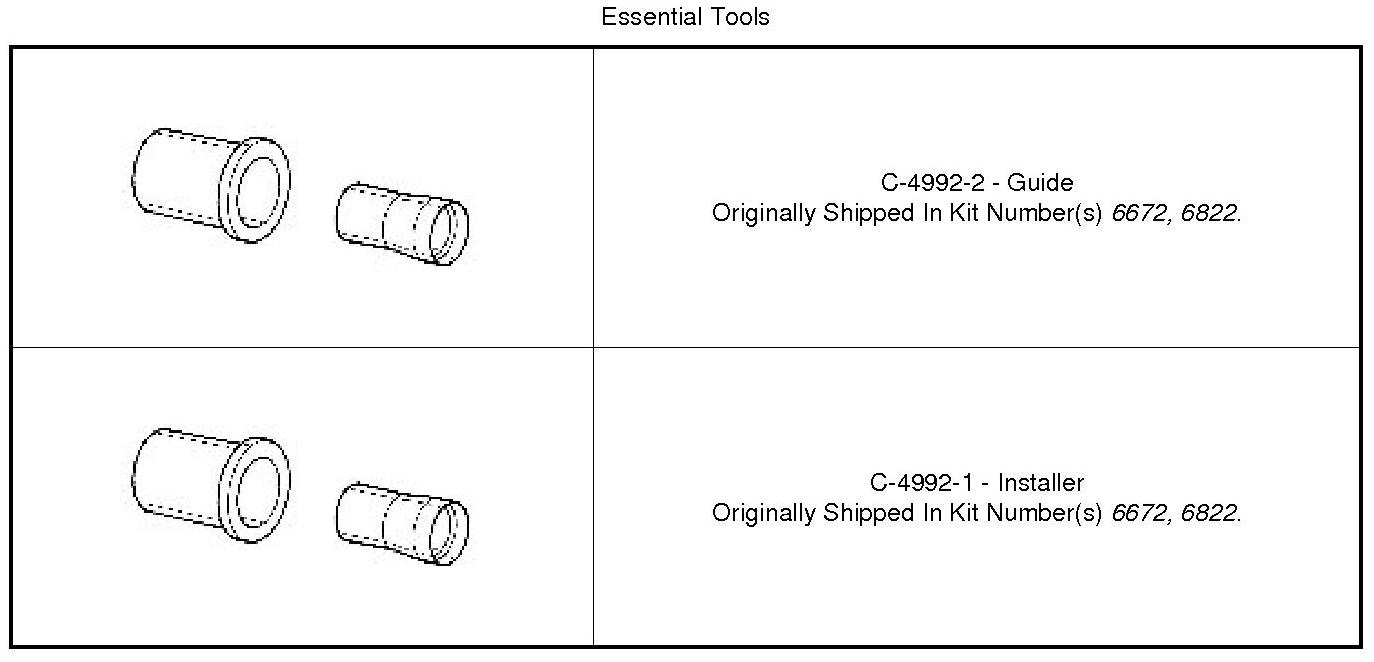

Special Tools:

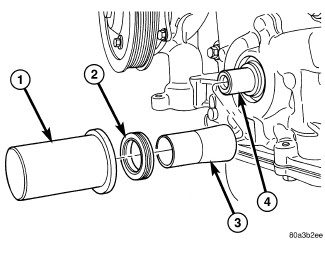

1. Position Special Tool Guide (3) , on the crankshaft nose.
2. Position new seal (2) over the guide with the seal spring in the direction of the engine front cover.
3. Install seal using Special Tool (1) until seal is flush with cover.
4. Install crankshaft damper. Vibration Damper - Installation
5. Install accessory drive belt. Serpentine Accessory Drive Belt - Installation
6. Lower vehicle and connect negative cable to battery.
