Cylinder Head Off

CYLINDER HEAD OFF

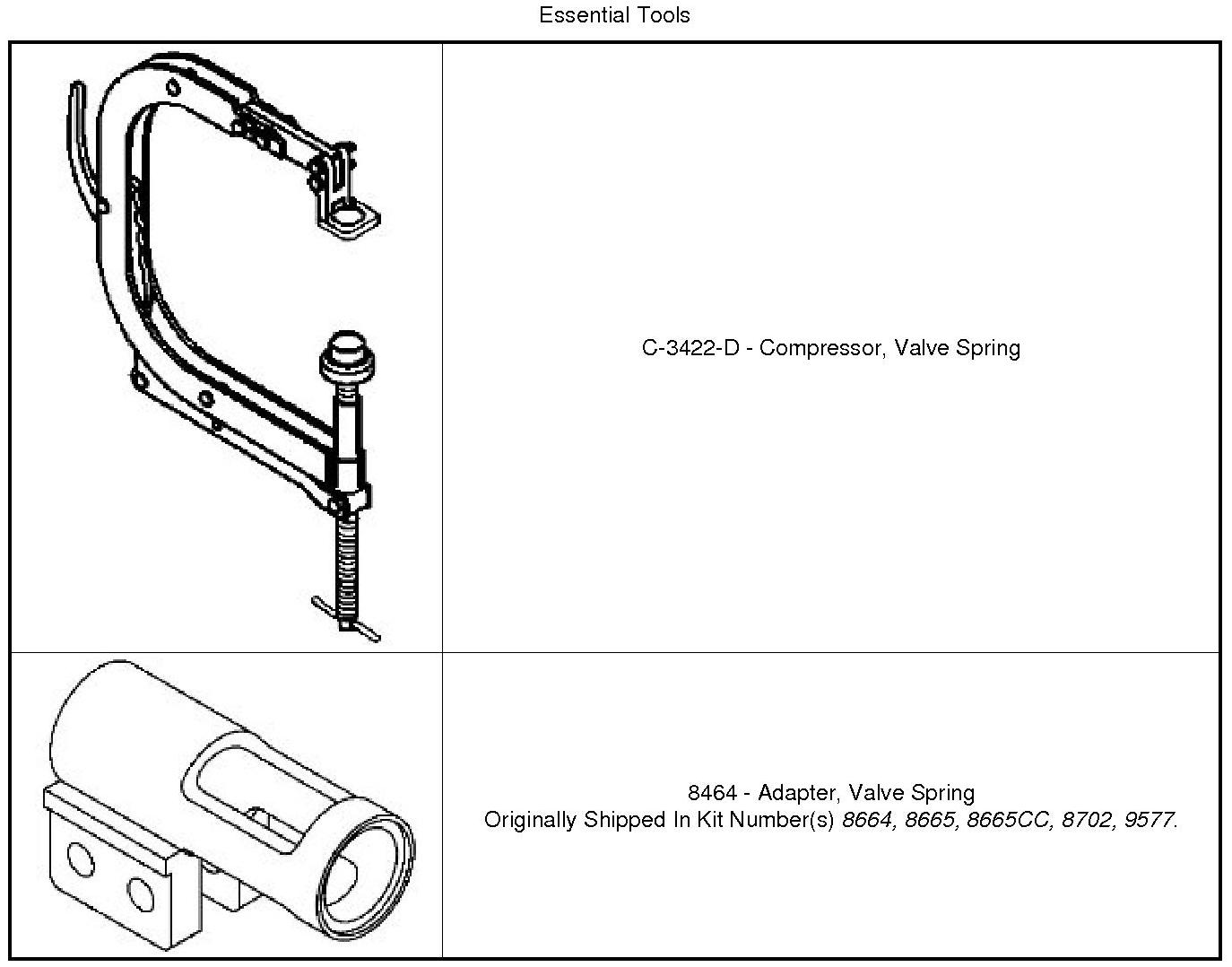

Special Tools:















1. If removed, install a new valve stem seal Valve Guide Seals - Installation.

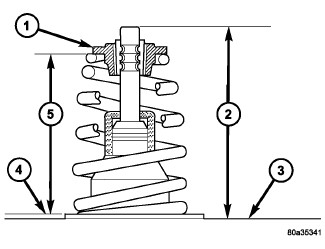

2. Position valve spring and retainer on spring seat.

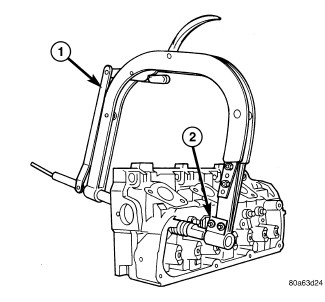

3. Using Special Tool with Adapter , compress the spring only enough to install the valve retainer locks. Install valve retainer locks.










4. Slowly release the spring tension. Ensure the retainer locks are seated properly.
