Vibration Damper - Removal

REMOVAL

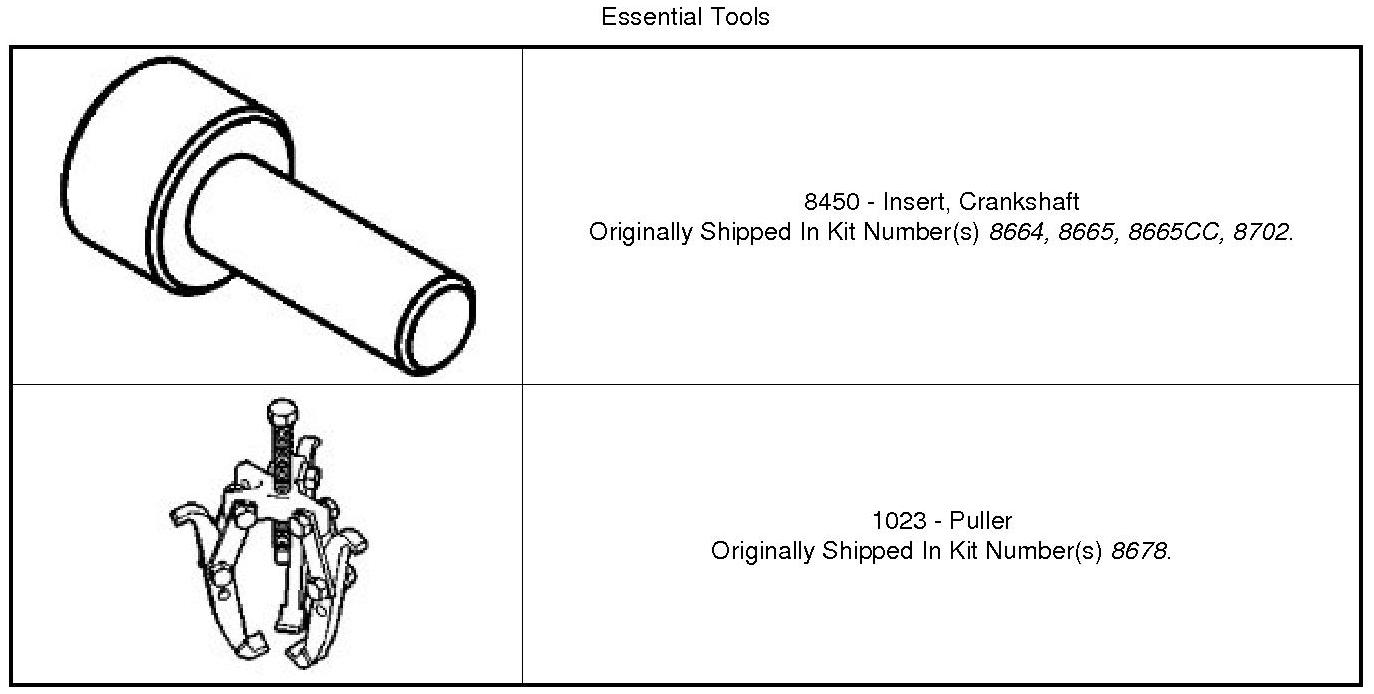

Special Tools:










1. Disconnect and isolate the negative battery cable.
2. Raise and secure vehicle on hoist Maintenance
3. Remove the accessory drive belt Serpentine Accessory Drive Belt - Removal
4. Remove vibration damper bolt.

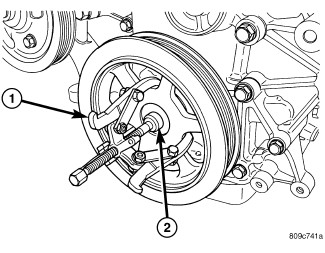

5. Place Crankshaft Insert (2) into crankshaft nose.
6. Position Puller (1) on damper. Turn puller forcing screw until damper releases from crankshaft.
7. Remove the crankshaft vibration damper.
